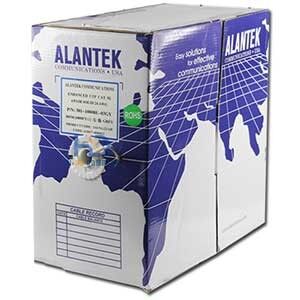

Cáp mạng Alantek Cat5e FTP 305m
Thương Hiệu Alantek
Part Number: 301-10F08E-03GY

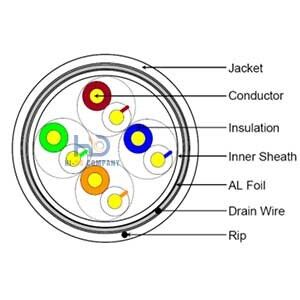

Alantek CAT5E Twisted Pair Cable is designed to support high-bandwidth application up to 1 Gigabit Ethernet.
The cable is composed of 24AWG Bare Solid Copper conductors insulated with High Density Polyethylene
(HDPE) insulation (1.03mm). For the Shielded cable, the insulated conductors are twisted into pair and
completed with an Outer Jacket an additional layer of Aluminium Laminated Foil covers the 4 twisted pairs of
insulated conductor.
Application: Cáp mạng Alantek Cat5e FTP
Horizontal wiring suitable for application up to 1 Gigabit Ethernet.
Standards: TIA/EIA 568B, ISO/IEC 11801, UL 444.
Color: Grey.
Packaging: 305m/reel.
Specifications:
Conductor
Material: Solid bare copper.
Size: 24AWG x 4 Pairs.
Diameter: 1/0.50 +/- 0.02mm.
Conductor Insulation
Material: HDPE
Min. Ave. Thickness: 0.21 mm
Min. Thickness at any point: 0.20 mm
Deameter: 0.92 +/- 0.02 mm
Jacket
Material: PVC.
Min. Ave. Thickness: 0.52 +/- 0.02 mm.
Min. Thickness at any point: 0.50 mm.
Diameter: 5.0 +/- 0.2mm.
Max Tensile Load (Installation): 100N.
Sản xuất tại Trung Quốc.
